In this article, I will show you how to install NTP and DNS for Zimbra mail server.
As in the previous article, you have prepared a server to install Zimbra. Now, we will continue to prepare NTP and DNS for mail servers.
Install and set up NTP service
Table of Contents
There is a service that quite a lot of people ignore when installing the server is NTP. Although when you install CentOS 7, it also asks you to select the time zone for the server.
However, that may not work exactly as you want.
You type the following command to install the NTP package.
[root@mail ~]# yum install ntp -yNext, we enable and start NTP service.
[root@mail ~]# systemctl enable ntpd && systemctl start ntpdYou can now check whether the NTP service is working by typing the following command.

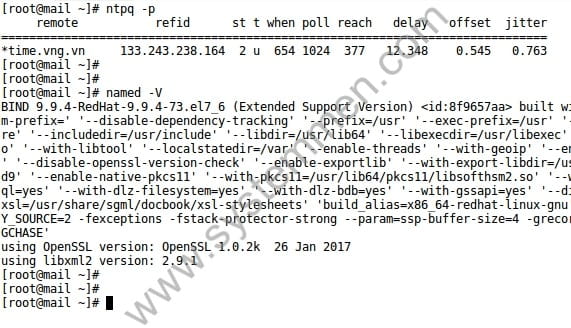

[root@mail ~]# ntpq -p
remote refid st t when poll reach delay offset jitter
==============================================================================
*time.vng.vn 133.243.238.164 2 u 718 1024 377 12.599 0.500 1.271Install and set up DNS for Zimbra mail server
I have encountered many errors when installing Zimbra, the main reason is due to DNS.
In Zimbra, it has Zimbra-DNSCache package, which Zimbra will install local DNS on your MTA server. This helps queries out the internet faster.
However, we are installing single server, so the MTA is in a single server. Therefore, before installing Zimbra, we need to install the DNS server and it will be right on the Zimbra mail server.
You type the following command to install DNS packages.
[root@mail ~]# yum install bind bind-utils -yConfigure /etc/named.conf file
Next, you edit the /etc/named.conf file as follows.
//
// named.conf
//
// Provided by Red Hat bind package to configure the ISC BIND named(8) DNS
// server as a caching only nameserver (as a localhost DNS resolver only).
//
// See /usr/share/doc/bind*/sample/ for example named configuration files.
//
// See the BIND Administrator's Reference Manual (ARM) for details about the
// configuration located in /usr/share/doc/bind-{version}/Bv9ARM.html
options {
listen-on port 53 { 127.0.0.1; 192.168.10.10; };
listen-on-v6 port 53 { ::1; };
directory "/var/named";
dump-file "/var/named/data/cache_dump.db";
statistics-file "/var/named/data/named_stats.txt";
memstatistics-file "/var/named/data/named_mem_stats.txt";
recursing-file "/var/named/data/named.recursing";
secroots-file "/var/named/data/named.secroots";
allow-query { localhost; 192.168.10.10; };
/*
- If you are building an AUTHORITATIVE DNS server, do NOT enable recursion.
- If you are building a RECURSIVE (caching) DNS server, you need to enable
recursion.
- If your recursive DNS server has a public IP address, you MUST enable access
control to limit queries to your legitimate users. Failing to do so will
cause your server to become part of large scale DNS amplification
attacks. Implementing BCP38 within your network would greatly
reduce such attack surface
*/
recursion yes;
dnssec-enable yes;
dnssec-validation yes;
/* Path to ISC DLV key */
bindkeys-file "/etc/named.iscdlv.key";
managed-keys-directory "/var/named/dynamic";
pid-file "/run/named/named.pid";
session-keyfile "/run/named/session.key";
forwarders { 8.8.8.8; };
};
logging {
channel default_debug {
file "data/named.run";
severity dynamic;
};
};
zone "." IN {
type hint;
file "named.ca";
};
zone "yourdomain.com" {
type master;
file "yourdomain.com.zone";
};
include "/etc/named.rfc1912.zones";
include "/etc/named.root.key";Please note the following in /etc/named.conf.
listen-on port 53 { 127.0.0.1; 103.95.198.193; };: Add your server’s IP to this lineallow-query { localhost; 103.95.198.193; };: Add your server’s IP to this lineforwarders { 8.8.8.8; };: Add this line at the end of the options block- Add zone for your domain.
zone "yourdomain.com" {
type master;
file "yourdomain.com.zone";
};Create domain zone file
Now, you create the file zone for your domain using the following command.
[root@mail ~]# nano /var/named/yourdomain.com.zoneAfter that, you add the following content to the file and save it, note the edit information for matching your server and domain.
;
; BIND data file for local loopback interface
;
$TTL 86400
@ IN SOA ns1.yourdomain.com. root.yourdomain.com. (
10118 ; Serial
604800 ; Refresh
86400 ; Retry
2419200 ; Expire
604800 ) ; Negative Cache TTL
;
; name servers - NS records
@ IN NS ns1.yourdomain.com.
@ MX 10 mail.yourdomain.com.
; name servers - A records
ns1 IN A 192.168.10.10
mail IN A 192.168.10.10Start the DNS service and check the record
You type the following command to enable and start the DNS service.
[root@mail ~]# systemctl enable named && systemctl start namedYou can then check the record with the following 2 commands.
[root@mail ~]# dig -t A mail.yourdomain.com
[root@mail ~]# dig -t MX yourdomain.comOr with this command.
[root@mail ~]# dig yourdomain anyConclusion
So, you have finished preparing NTP and DNS for your Zimbra mail server. Next article, we will install Zimbra on this server.
(This is an article from my old blog that has been inactive for a long time, I don’t want to throw it away so I will keep it and hope it helps someone).
