Install Ansible AWX on CentOS 7

by Daniel Pham
Published: Updated:
This entry is part 1 of 1 in the series Ansible AWX Tutorials

This article will guide you how to install Ansible AWX on CentOS 7. Ansible AWX is an open source software located on top of Ansible, which allows system administrators to manage their IT infrastructure easier.

The installation steps in this article have been successfully tested on a 64 bit CentOS Linux release 7.5.1804 (Core) server.

Hardware requirements

The system that runs the Ansible AWX service will need to satisfy the following requirements:

  • RAM: at leasts 4GB of memory.
  • CPU: at least 2 cpu cores.
  • HDD: at least 20GB of space.
  • Running Docker, Openshift, or Kubernetes.
  • If you choose to use an external PostgreSQL database, please note that the minimum version is 9.4.

Install the dependency package

Step 1: Disable SElinux and reboot the server.

You run the following command to replace enforcing with disabled in the config file of SElinux.

sed -i 's|SELINUX=enforcing|SELINUX=disabled|g' /etc/selinux/config

And then reboot the server:

reboot

Step 2: Install the dependency packages required for AWX.

You run the following commands in turn:

yum -y install epel-release
yum -y install git gcc gcc-c++ lvm2 bzip2 gettext nodejs yum-utils device-mapper-persistent-data ansible python-pip

Step 3: Install Docker-CE.

First, you run the command below to remove the old version of Docker on the server (if any).

yum -y remove docker docker-common docker-selinux docker-engine

Next, you add the Docker-CE repository to the server.

yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo

And now you run the command below to install Docker-CE.

yum -y install docker-ce

After installing Docker-CE, you enable and start the docker service.

systemctl start docker && systemctl enable docker

AWX require docker python module and you can install it via pip.

pip install -U docker-py

Then run the following command to check the installed version.

pip show docker-py

The results displayed on the screen will be similar to the following.

---
Metadata-Version: 2.0
Name: docker-py
Version: 1.10.6
Summary: Python client for Docker.
Home-page: https://github.com/docker/docker-py/
Author: Joffrey F
Author-email: [email protected]
Installer: pip
License: UNKNOWN
Location: /usr/lib/python2.7/site-packages
Requires: websocket-client, requests, backports.ssl-match-hostname, ipaddress, six, docker-pycreds
Classifiers:
Development Status :: 4 - Beta
Environment :: Other Environment
Intended Audience :: Developers
Operating System :: OS Independent
Programming Language :: Python
Programming Language :: Python :: 2
Programming Language :: Python :: 2.6
Programming Language :: Python :: 2.7
Programming Language :: Python :: 3
Programming Language :: Python :: 3.3
Programming Language :: Python :: 3.4
Programming Language :: Python :: 3.5
Topic :: Utilities
License :: OSI Approved :: Apache Software License

Install Ansible AWX on CentOS 7

Step 1: Clone AWX from the repository.

git clone --depth 50 https://github.com/ansible/awx.git

The result of the clone implementation will be similar to the following.

Cloning into 'awx'...
remote: Enumerating objects: 9383, done.
remote: Counting objects: 100% (9383/9383), done.
remote: Compressing objects: 100% (5148/5148), done.
remote: Total 9383 (delta 5773), reused 6229 (delta 4103), pack-reused 0
Receiving objects: 100% (9383/9383), 16.43 MiB | 7.59 MiB/s, done.
Resolving deltas: 100% (5773/5773), done.

Step 2: Edit file inventory before installation.

Move to folder awx/installer

cd awx/installer/

Now run the command below to see what parameters are active in the inventory file.

grep -v '^ *#' inventory | sed '/^$/d'

Here are the parameters in the default file.

localhost ansible_connection=local ansible_python_interpreter="/usr/bin/env python"
[all:vars]
dockerhub_base=ansible
awx_task_hostname=awx
awx_web_hostname=awxweb
postgres_data_dir=/tmp/pgdocker
host_port=80
docker_compose_dir=/var/lib/awx
pg_username=awx
pg_password=awxpass
pg_database=awx
pg_port=5432
rabbitmq_password=awxpass
rabbitmq_erlang_cookie=cookiemonster
admin_user=admin
admin_password=password
create_preload_data=True
secret_key=awxsecret

If you install AWX on the localhost (machine you are doing the command on it) then you do not care about the other parameters.

You just edit the two main parameters that are:

Parameter 1: admin_password.

You run the command below to edit the parameter admin_password and you change yournewpass using your password.

sed -i 's|admin_password=password|admin_password=yournewpass|g' inventory

Parameter 2: secret_key.

Next, run the following command to automatically generate a new random string, which will be used for secret_key.

openssl rand -base64 30
EuO3d2h8NXdb5rvfGPj0FVaZRsMV2p8dnDwY6w2Q

Then you run the command below to replace the secret_key in the inventory file with the random sequence created above.

sed -i 's|secret_key=awxsecret|secret_key=EuO3d2h8NXdb5rvfGPj0FVaZRsMV2p8dnDwY6w2Q|g' inventory

Now that you run the command that displays the active parameters in the inventory file again, check that the value has been replaced exactly as you did. This is just to be sure, no obligation.

grep -v '^ *#' inventory | sed '/^$/d'

The results:

localhost ansible_connection=local ansible_python_interpreter="/usr/bin/env python"
[all:vars]
dockerhub_base=ansible
awx_task_hostname=awx
awx_web_hostname=awxweb
postgres_data_dir=/tmp/pgdocker
host_port=80
docker_compose_dir=/var/lib/awx
pg_username=awx
pg_password=awxpass
pg_database=awx
pg_port=5432
rabbitmq_password=awxpass
rabbitmq_erlang_cookie=cookiemonster
admin_user=admin
admin_password=yournewpass
create_preload_data=True
secret_key=EuO3d2h8NXdb5rvfGPj0FVaZRsMV2p8dnDwY6w2Q

Step 3: Install Ansible AWX.

After you have finished editing the inventory file, run the following command to proceed with the AWX installation.

ansible-playbook -i inventory install.yml

The process of creating containers and settings will take about 15-20 minutes, depending on your system.

Install Ansible AWX
Install Ansible AWX.

After the installation is complete, run the following command to display the created containers. If everything is OK then 5 containers are created correspondingly as below.

docker ps

CONTAINER ID        IMAGE                        COMMAND                  CREATED             STATUS              PORTS                                                 NAMES
748d34f72bd3        ansible/awx_task:2.1.0       "/tini -- /bin/sh -c…"   2 minutes ago       Up 2 minutes        8052/tcp                                              awx_task
a2c77e4551cc        ansible/awx_web:2.1.0        "/tini -- /bin/sh -c…"   3 minutes ago       Up 3 minutes        0.0.0.0:80->8052/tcp                                  awx_web
529da29c4be5        memcached:alpine             "docker-entrypoint.s…"   9 minutes ago       Up 9 minutes        11211/tcp                                             memcached
7c615c5b43b2        ansible/awx_rabbitmq:3.7.4   "docker-entrypoint.s…"   9 minutes ago       Up 9 minutes        4369/tcp, 5671-5672/tcp, 15671-15672/tcp, 25672/tcp   rabbitmq
1aa8573a0416        postgres:9.6                 "docker-entrypoint.s…"   11 minutes ago      Up 11 minutes       5432/tcp                                              postgres

Now open your browser and access the AWX interface with your server’s IP. Ex: http://192.168.10.10

Access Ansible AWX login page
Access Ansible AWX login page.

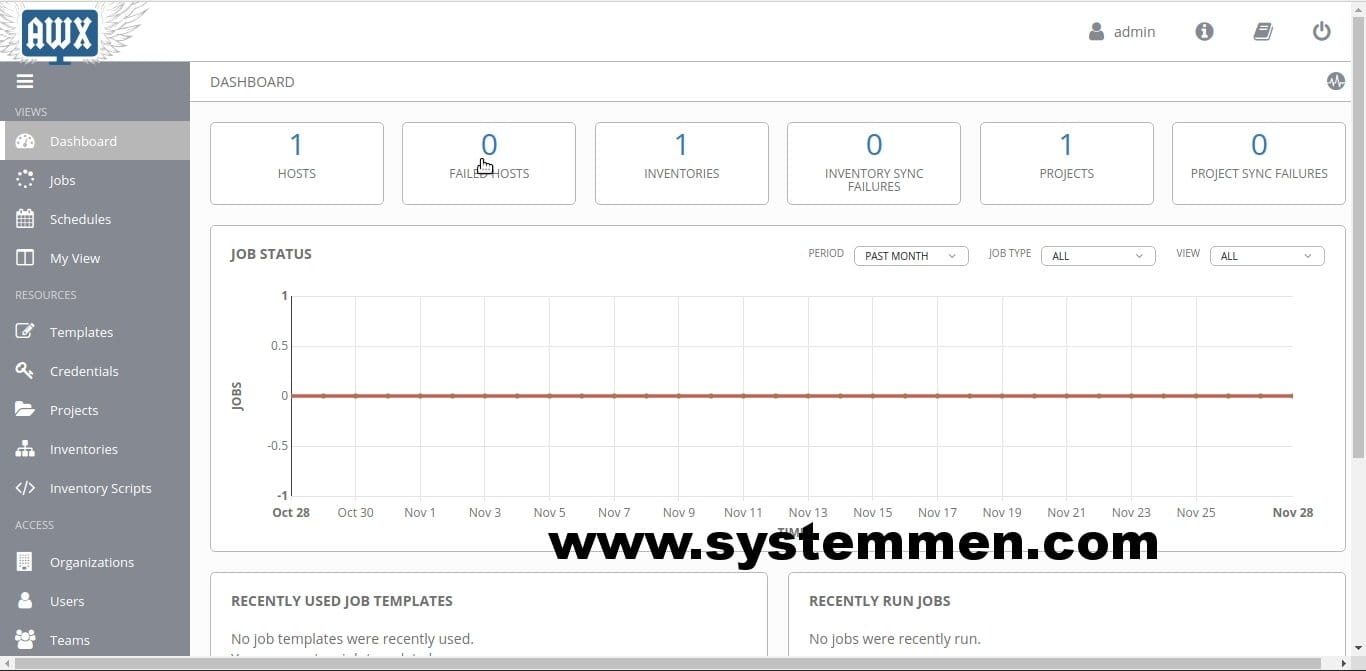

Inside dashboard look like this.

Inside Ansible AWX dashboard
Inside Ansible AWX dashboard.

Setup HTTPS

To set up https for the AWX login page, you can use a reverse nginx proxy with an SSL certificate on it.

This nginx server can be installed separately from AWX server or install with AWX.

Since the article has been quite long and the purpose is to successfully install Ansible AWX first, the reverse proxy settings I will write in the next section.

(This is an article from my old blog that has been inactive for a long time, I don’t want to throw it away so I will keep it and hope it helps someone).
